Key Features
- Slim Compact Aluminum Frame
- Engraved Light-Guide Evacuation Sign
- Customizable Evacuation Graphics
- Side Switch + Test Function
- Maintained + ≥3H Emergency Sign
- Flexible Wall / Hanging Installation
Emergency Exit Sign

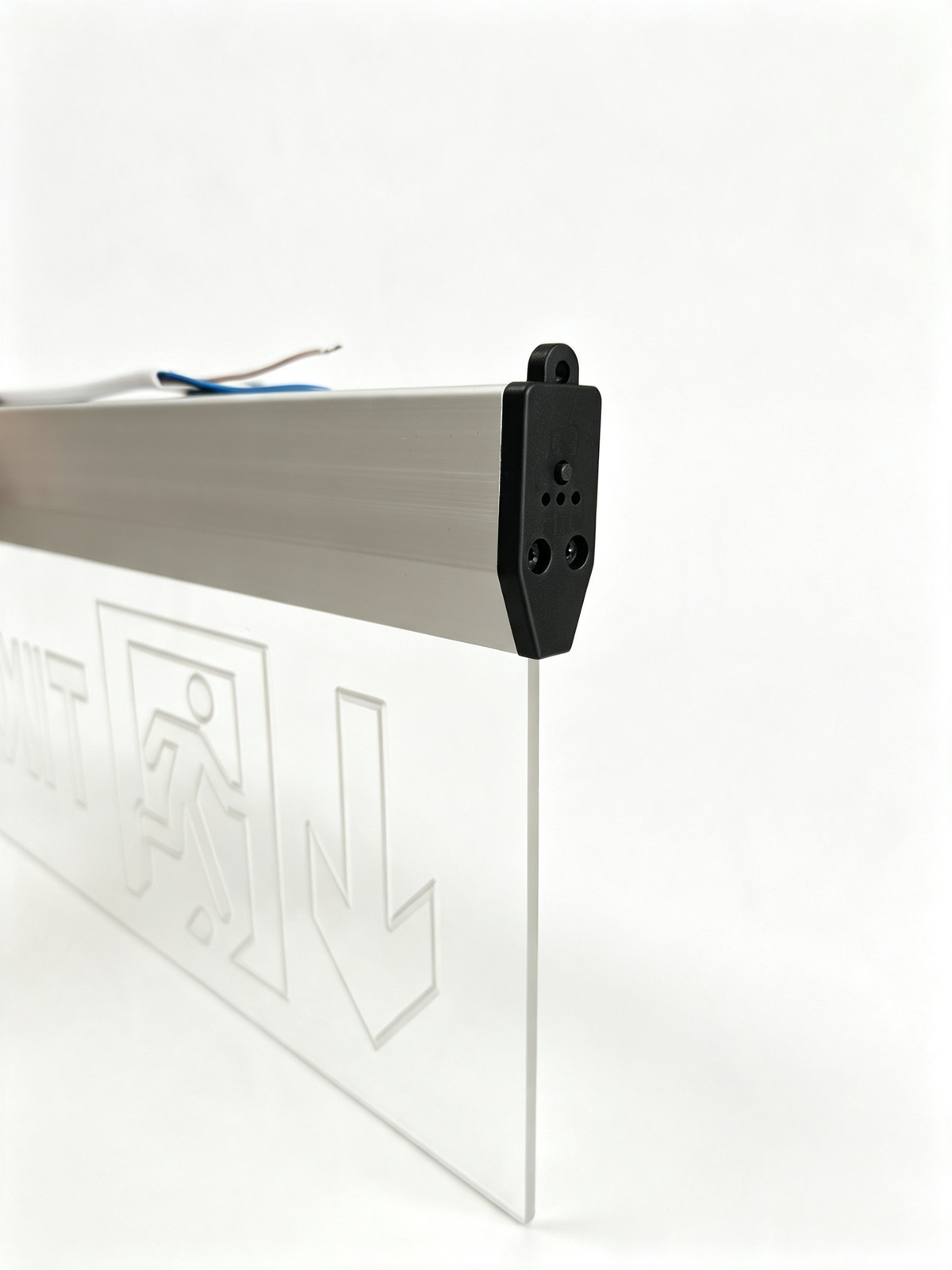

ZS804 — LED Emergency Exit Sign with Battery Backup
ZS804 is an LED emergency exit sign with battery backup with 8 LEDs, 3.7V 500mAh Li-ion Battery, 3H runtime. Contact Rayhor for configuration, packaging and export-order details.
EXPORT
QC
OEM
| Power | 3W |
|---|---|
| LED Qty | 8 |
| Voltage | AC85-265V 50-60Hz |
| Battery | 3.7V 500mAh Li-ion Battery |
| Emergency Time | 3H |
| Material | Acrylic+Aluminum |
| Installation | Wall Mount / Suspended |
| Body Size | 360×22×200mm |
| Packing Size | 38.5×31×44cm/20PCS |
| Gross Weight | 8.68KG |
- ✓ Factory direct price, OEM/ODM supported
- ✓ Compliance documentation confirmed by model
- ✓ Samples available, reply within 24 hours
Product Detail
The Rayhor ZS804 is an LED emergency exit sign with battery backup developed for backup and emergency-lighting applications. Its confirmed catalog specification includes 8 LEDs, 3.7V 500mAh Li-ion Battery, 3H runtime. The product body measures 360×22×200mm. Buyers can confirm the required market configuration, packaging and order quantity with Rayhor before production.
Recommended Applications
- Exit and evacuation-route identification in commercial and public buildings
- Installation in corridors, stairways, shops, offices and hospitality projects
- Wall-mounted or suspended applications according to the selected model
- OEM supply for distributors, importers and project contractors
Charging & Operation
Install the sign according to the selected mounting method and verify normal charging and emergency operation after installation. Confirm the required legend, arrow direction, input voltage and viewing configuration before ordering.
OEM & Packaging Options
- Product label and customer-logo options subject to order requirements
- Retail color box, instruction manual and export-carton options
- Market-specific configuration confirmed before sampling and production
Factory quality control
Checks Before Shipment
- LED function and appearance inspection
- Battery charging and emergency-operation check
- Switch, indicator and housing inspection as applicable
- Packing and quantity verification before shipment
Buyer questions
ZS804 FAQ
What are the main specifications of the ZS804?
The current catalog lists 8 LEDs, 3.7V 500mAh Li-ion Battery, 3H runtime. Please confirm the final order configuration with Rayhor before production.
Can the ZS804 be customized for export orders?
OEM labeling, packaging and market-specific configurations can be discussed according to the required quantity and destination market.
Can I request a sample before placing a bulk order?
Sample availability and lead time can be confirmed after the required specification, destination market and quantity are provided.
